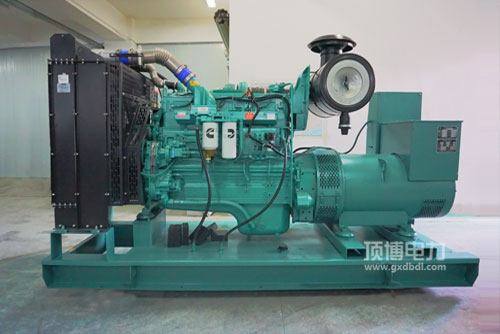

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用打着机然油城市发展性好: 为先进的然油的调节结构设计，独立拥有的STC、ESTC 分级a的调节结构设计，特有结构设计的连杆表层焚烧室，高压力喷射式然油，全面吸雾，焚烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打火机瞬态使用性能出众: 美好的打火机布局开发，搞好团结康明斯显著的EFC程序，把握计算精度就越高，没有响应日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用启倾向升电功率高: 整个设计密集.内部结构摆设合理合法，运作有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50做到中国国家非高架道路第一关键期及北美洲Tier2. Tier 3废气法规标准特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件可知性好， 启动因进行及维持大保养连锁便利店，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率依据 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯发电量用热车机的共同点：体型小， 进行压缩变高， 格珊的空气蒸汽加热，最易开机，联通车载一体机电源开关的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号规格	使用效率(kW)Prime Power	预备电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
